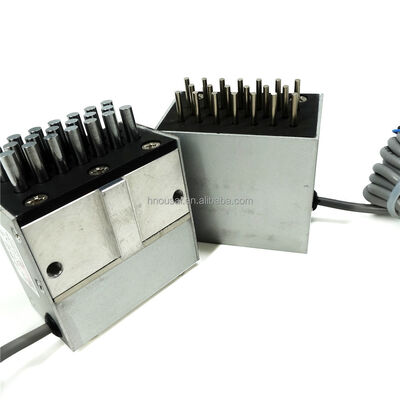

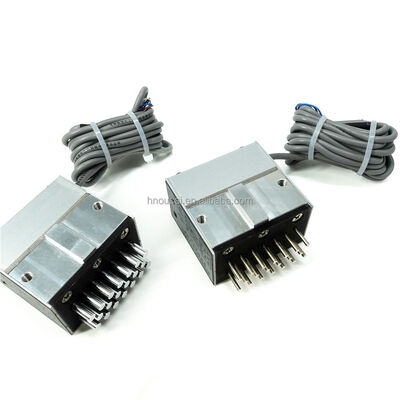

Loosen End Empty Filter Rod Detector Test for Kingsize Cigarette 7.8x84mm

Duży Obraz : Loosen End Empty Filter Rod Detector Test for Kingsize Cigarette 7.8x84mm

Szczegóły Produktu:

Miejsce pochodzenia:	Guangdong, Chiny

Zapłata:

Minimalne zamówienie:	1
Cena:	$1,300-1,350

Kontakt

Szczegółowy opis produktu

Zdolność produkcyjna:	10000 sztuk/miesiąc	Typ napędzany:	Elektryczny
Ocena automatyczna:	Półautomatyczny	Woltaż:	220 V
Waga (kg):	8	Gwarancja:	nie płynny
Kluczowe punkty sprzedaży:	Automatyczny	Nazwa produktu:	Poluzuj końcówkę czujnika pustego filtra
Rozmiar:	Rozmiar King/Queen/Superslim	Stosowanie:	Sasib 3000/Sasib 6000/HLP2
Napięcie główne:	24vdc	Funkcja:	Długie życie funkcjonalne
Pakiet:	Karton/drewniany	Certyfikat:	CE / ISO
Podkreślić:	Kingsize cigarette filter rod detector , Empty filter rod tester 7.8x84mm , Cigarette machine parts with warranty

Product Overview

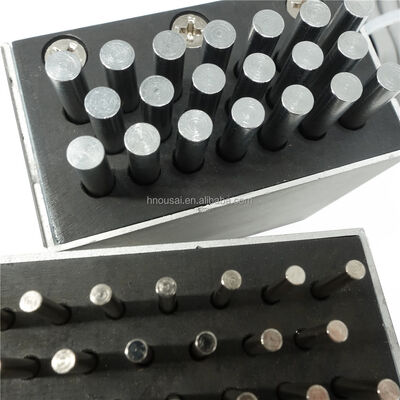

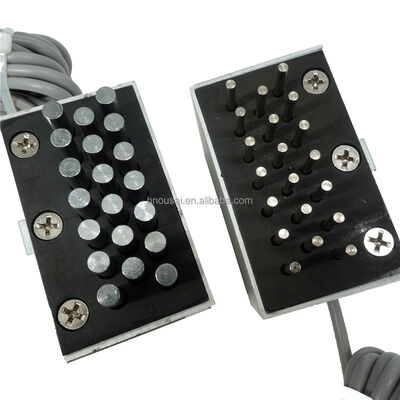

A cigarette testing device for cigarette packaging machines located at a point in the manufacturing process just before the cigarettes are placed into cigarette packages, for simultaneously testing the ends of cigarettes disposed in a group. Magnetic Sensitive Loose-end Missing Filter Defective Cigarette Detector is a cigarettes location detection system, built-in 20 displacement magnetoelectric converters, used for dectecting the loose-end and missing filter rod, if the cigarette was detected loose-end or missing filter, the sensor will output signal, for rejecting the cigarettes into the pack. This system includes a probe in the form of a split fiber optics bundle located adjacent a conveyor or other transport means for cigarettes which travel along the conveyor with their axes substantially normal to the direction of travel of the conveyor. The fibers of the bundle are divided randomly and one branch extends to a light source and the other to a detector. In this fashion, light will be directed from the probe towards the tobacco end of the traveling cigarettes. The reflected light is transmitted through the other branch to the detector which is coupled with a bridge circuit for measuring the level of intensity of the reflected light. When a loose cigarette end is detected, either a memory circuit or wheel is actuated in order that the cigarette having the detected loose end will be eventually rejected by an ejection mechanism.

Hainan Osay Technology Group Co., Ltd., an innovative company that specializes in manufacturing and supply of spare parts for tobacco machinery, as well as providing top-notch technical services to tobacco industry. We understand that the tobacco industry is ever-evolving, and we are ready to adapt to the changing landscape. Our knowledgeable team stays informed about the latest industry trends to provide our customers with cutting-edge solutions that meet their specific needs and requirements.

Our comprehensive range of products includes spare parts for cigarette making, packing machine and filter making machine. We also supply customization service as drawing or sample of the parts from clients. Each product is meticulously crafted to meet the requirements and standards of the tobacco industry.
